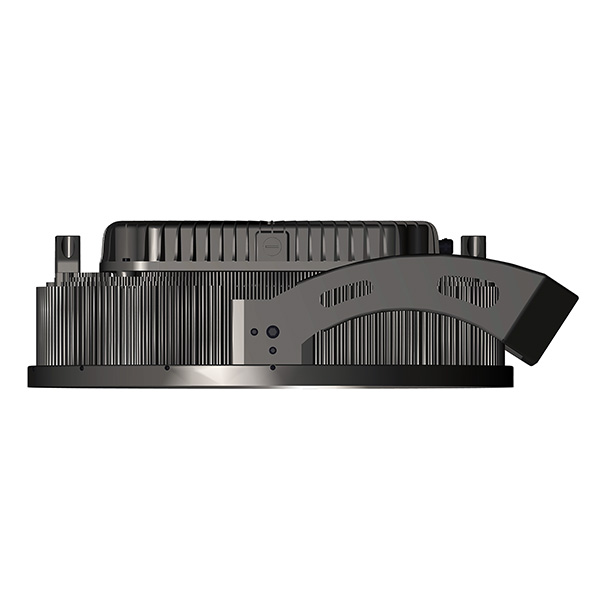

500W LED Sports Light Floodlights Fixtures Exterior Hockey Puck Badminton Court Lighting (3HM Series)
Green Inova ® 's powerful LED high mast light is designed to replace high power traditional lighting products, such as Metal Halide, High Pressure Sodium light, High Intensity Discharge Lamp, etc., available in 300W, 400W, 500W, 600W, 750W, 950W, 1200W, replacing MH/HPS/HID from 600W to 3500W. The light output is up to 125lm/w, more energy-saving than ever.
The compact design makes shipping and installation much easier. And excellent thermal management with cold-forging heat sink and unique heat dissipation structure makes it much better cooling system than other competitives, enables longer lifespan, almost free of maintenance.
|Color Temperature (CCT)||3000K/4000K/5000K/5700K/6500K (others available)|
|Lumen Output (LM)||56,614|
|Input Voltage (V)||100-277V (347-480V available)|
|CRI||≥70Ra, or ≥90Ra|
|Gross Weight||14.1 kgs / 31.1 lbs|
|Dimensions (in)||Φ377mm × L172mm|
|IK Rating||IK10 (High impact resistance)|
|Anti-wind Test||Withstand class 17 typhoon|
|Beam Angle (°)||16°, 40°, 60°, 90°, Type III, Type V optional|
|LED Class||UL Listed: LM80|
|Driver Class||UL Listed: Class II|
|SPD||20KV SPD standard (40KV optional)|
|Photocontrol||Twist-lock photocell available|
|Dimming Options||0-10V dimming / Zigbee wireless dimming available|
|Zigbee Control||On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP)|
|Environment||Indoor or outdoor|
|Operating Temperature||–40°C- 40°C / -40°F - 104°F|
|Certifications||UL/cUL, CB, CE, ENEC, ROHS approved.
(PSE/RCM/SAA/EAC/KC/BIS/Inmetro/TISI/NOM/SASO COC pending)
|L70 Lifetime (hours)||>100,000 Hrs (L70 @ 25°C)|
|Warranty||7-year warranty for 100-277V version, 5-year warranty for 347-480V version|
● High Protection Level up to IP67
Light engines and driver compartment are sealed to protect LEDs, electrical components, and terminal block against dust and moisture, increasing reliability and extending lifespan.
● High Impact Resistance
Meets IK10 mechanics impact protection code.
● Anti 17-level Wind Power
Fixture’s Low profile and pin structure effectively reduce wind load, plus light weight and high mechanics strength, the fixture has strong ability of anti-wind.
● High Vibration Resistance
Meets ANSI C136.31-2001 3G bridge and overpass vibration standards.
● Surge Suppression Protection
Optional 20KV or 40KV SPD for adding an additional layer of protection for the light.
● HD TV Broadcasting
High lumen efficiency, flicker free, and options of CRI>90, TLCI>90, meeting the lighting requirements of HD TV broadcasting for sports events.
● Intelligent Control
Intelligent Zigbee controller, supports wireless on/off, dimming, color turning, grouping, status monitoring, remote control, all simply and easily via smart-phone.
● Twist-lock Photocontrol
Optional twist-lock photocell at the back, can be quickly upgraded in the future.
Optics of this 500W version are 16°, 40°, 60°, 90° optional. A variety of lighting distributions, UV stabilized materials, meeting demands of various applications. Widely used for both indoor and outdoor, including stadium, high mast pole, airport, roadway, etc..
|Wattage||Beam Angle||NEMA Angle|
Extraordinary Thermal Management
The professional and unique pin heat sink design creates superb ventilative efficiency. Air is freely flowable among the pins in any direction, maximizing heat dissipation and lifespan of the LEDs.
Advantage of our pin heatsink: Incoming air from any direction moves approximately straight forward through the pins, bringing away heat quickly. Comparing to other typical radiant-fin heatsink, incoming air is deflected and slowed down by the radiant fins, moving heat slowly.
High Thermal Conductivity
We use A1070 pure Aluminum, with 223 w/m.k thermal conductivity (VS. Typical ADC12 Aluminum with only 98 w/m.k)
Slim and Lightweight
Optimized engineered design, slim and lightweight, no clunky components, significantly reducing shipping and labor, and safer to use on your existing infrastructure.
300W / 400W / 500W
600W / 750W
950W / 1200W
Mounting angle adjustable up to 270°. Suitable for vertical mount / horizontal mount to pole devices, and ceiling mount.
1) Sports lighting applications: outdoor and indoor sports arenas and stadiums, indoor sports halls, etc.
2) High mast flood lighting applications: expressways merge or intersect, airport, shipping terminals, heavy-industry zones, Plazas, prison yards,etc.
Projects that feedback from our customers
Application: Outdoor area high mast pole
Location: Saudi Arabia
Application: Water Golf Course
