950W 1000W LED Stadium Lights Flood Light Fixture Replacing 2000w Metal Halide HPS (3HM Series)

Short Description:


  • Wattage: 950W
  • Voltage: 100-277V, 347-480V available
  • Lumens: 115,344LM
  • CCT: 3000K/4000K/5000K/5700K/6500K
  • Beam Angle: 16°/40°/60°/90°/120°/Type III/Type V
  • IP: 67
  • IK: 10 (High impact resistance)
  • SPD: 20KV or 40KV
  • Controls: Twist-lock Photocell, Dimming, Zigbee or DMX512 Control available
  • Certifications: UL/cUL, CB, CE, ENEC, ROHS approved (PSE/RCM/SAA/EAC/KC/BIS/Inmetro/TISI/NOM/SASO COC pending)
  • Warranty: 7-year warranty for 100-277V version, 5-year warranty for 347-480V version
  • Product Detail

    Product Tags

    LED stadium light high mast lighting
    LED stadium light Certifications

    Description

    Green Inova ® 's powerful LED high mast light is designed to replace high power traditional lighting products, such as Metal Halide, High Pressure Sodium light, High Intensity Discharge Lamp, etc., available in 300W, 400W, 500W, 600W, 750W, 950W, 1200W, replacing MH/HPS/HID from 600W to 3500W. The light output is up to 125lm/w, more energy-saving than ever.

    The compact design makes shipping and installation much easier. And excellent thermal management with cold-forging heat sink and unique heat dissipation structure makes it much better cooling system than other competitives, enables longer lifespan, almost free of maintenance.

    Specification Summary

    Typical Model 3H950XXXX2XXX
     Power (W) 950W
    Color Temperature (CCT) 3000K/4000K/5000K/5700K/6500K (others available)
    Lumen Output (LM) 115,344
    Efficacy (lm/W) 122
    Input Voltage (V) 100-277V (347-480V available)
    Power Factor >95%
    CRI ≥70Ra, or ≥90Ra
    Gross Weight 27 kgs / 59.5 lbs
    Dimensions (in) Φ531mm  × L172mm
    IP Rating IP67
    IK Rating IK10 (High impact resistance)
    Anti-wind Test Withstand class 17 typhoon
    Beam Angle (°) 16°, 40°, 90°, 120°, Type III, Type V optional
    Driver Brand Meanwell
    LED Class UL Listed: LM80
    Driver Class UL Listed: Class II
    SPD 20KV or 40KV
    Photocontrol Twist-lock photocell available
    Dimming Options 0-10V dimming / Zigbee wireless dimming available
    Zigbee Control On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP)
    DMX Control DMX512 control available
    Environment Indoor or outdoor
    Operating Temperature –40°C- 40°C / -40°F - 104°F
    Certifications UL/cUL, CB, CE, ENEC, ROHS approved.
    (PSE/RCM/SAA/EAC/KC/BIS/Inmetro/TISI/NOM/SASO COC pending)
    L70 Lifetime (hours) >100,000 Hrs (L70 @ 25°C)
    Warranty 7-year warranty for 100-277V version, 5-year warranty for 347-480V version

    Features

    ● High Protection Level up to IP67

    Light engines and driver compartment are sealed to protect LEDs, electrical components, and terminal block against dust and moisture, increasing reliability and extending lifespan.

    ● High Impact Resistance

    Meets IK10 mechanics impact protection code.

    ● Anti 17-level Wind Power

    Fixture’s Low profile and pin structure effectively reduce wind load, plus light weight and high mechanics strength, the fixture has strong ability of anti-wind.

    ● High Vibration Resistance

    Meets ANSI C136.31-2001 3G bridge and overpass vibration standards.

    ● Surge Suppression Protection

    Optional 20KV or 40KV SPD for adding an additional layer of protection for the light.

    ● HD TV Broadcasting

    High lumen efficiency, flicker free, and options of CRI>90, TLCI>90, meeting the lighting requirements of HD TV broadcasting for sports events.

    ● Intelligent Control

    Intelligent Zigbee controller, supports wireless on/off, dimming, color turning, grouping, status monitoring, remote control, all simply and easily via smart-phone.

    ● Twist-lock Photocontrol

    Optional twist-lock photocell at the back, can be quickly upgraded in the future.

    Beam Angle

    Optics of this 950W version are 16°, 40°, 60° optional. A variety of lighting distributions, UV stabilized materials, meeting demands of various applications. Widely used for both indoor and outdoor, including stadium, high mast pole, airport, roadway, etc..

    Wattage   Beam Angle   NEMA Angle
      300W-500W 16° 3H3V
      300W-500W 40° 4H4V
      300W-500W 60° 5H5V
      300W-500W 90° 6H6V
      600W-750W 16° 3H3V
      600W-750W 40° 4H4V
      600W-750W 60° 5H5V
     950W-1200W 16° 3H3V
     950W-1200W 40° 4H4V
     950W-1200W 60° 5H5V
    LED high mast light beam angle
    LED stadium light beam angle

    Extraordinary Thermal Management

    The professional and unique pin heat sink design creates superb ventilative efficiency. Air is freely flowable among the pins in any direction, maximizing heat dissipation and lifespan of the LEDs.

    Advantage of our pin heatsink: Incoming air from any direction moves approximately straight forward through the pins, bringing away heat quickly. Comparing to other typical radiant-fin heatsink, incoming air is deflected and slowed down by the radiant fins, moving heat slowly.

    High Mast Light Heat dissipation

    High Thermal Conductivity

    We use A1070 pure Aluminum, with 223 w/m.k thermal conductivity (VS. Typical ADC12 Aluminum with only 98 w/m.k)

    LED sports light high mast

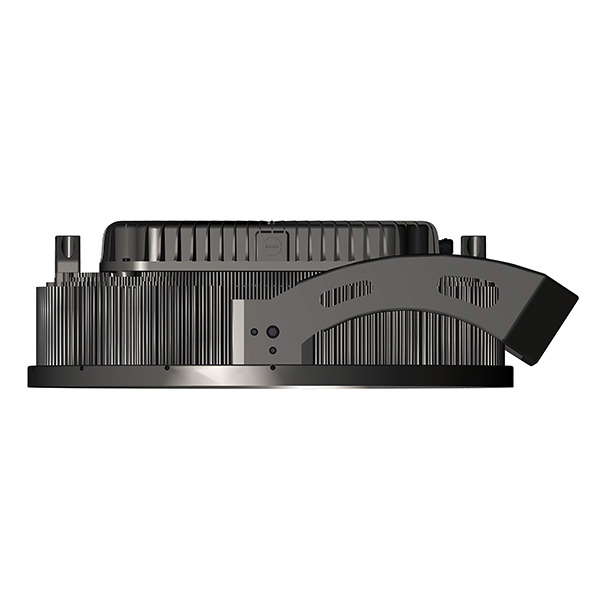

    Slim and Lightweight

    Optimized engineered design, slim and lightweight, no clunky components, significantly reducing shipping and labor, and safer to use on your existing infrastructure.

    Slim LED Stadium Lihgt

    Dimensions

    LED-stadium-light-300W-400W-500W-dimension
    LED-stadium-light-600W-750W-dimension
    LED-stadium-light-950W-1200W-dimension

    300W / 400W / 500W

    600W / 750W

    950W / 1200W

    Easy Installation

    Mounting angle adjustable up to 270°. Suitable for vertical mount / horizontal mount to pole devices, and ceiling mount.

    LED-stadium-light-mounting
    LED-stadium-light-mounting-2
    LED-stadium-light-mounting-3

    Horizontal Mount

    Vertical Mount

    Ceiling Mount

    Applications

    1) Sports lighting applications: outdoor and indoor sports arenas and stadiums, indoor sports halls, etc.
    2) High mast flood lighting applications: expressways merge or intersect, airport, shipping terminals, heavy-industry zones, Plazas, prison yards,etc.

    Projects that feedback from our customers

    LED stadium light application

    Application: Outdoor area high mast pole
    Location: Saudi Arabia

    LED stadium light application-golf-Green Inova

    Application: Water Golf Course
    Location: Vietnam

    Please contact us for spec sheet or other inquiry
