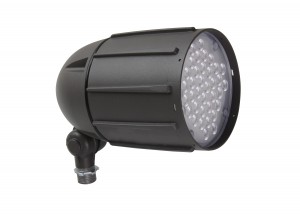

30W New LED Landscape Lighting LED Bullet Flood Light IP65 Waterproof Garden Lights (5BF Series)

Short Description:


  • Wattage: 30W
  • Voltage: 100-277V
  • Lumen: 3600-3870LM
  • CCT: 3000K/4000K/5000K
  • Optics: Die-cast aluminum + Optic lens
  • Beam Angle: 22°/35°/57°
  • Certifications: UL/cUL, DLC Premium, LM79, LM80
  • Controls: Dimming
  • Warranty: 6-year limited system warranty standard
  • Product Detail

    Product Tags

    5th Gen. LED Landscape Light

    Description

    Green Inova ® ‘s 5th Gen. LED Bullet Flood light delivers exceptional illumination performance by using Latest LED Technology, efficacy up to 135 LPW, and it can replace up to 150W metal halide, energy saving over 80%.
    Sealed to keep out dirt, bugs and moisture, the luminaire is constructed with a precision die-cast aluminum housing and tempered, shatter-resistant glass for a sleek appearance and maximum durability.

    Specification Summary

    Typical Model 5BF30L30DN 5BF30L40DN 5BF30L50DN
     Power (W) 30W 30W 30W
    Color Temperature (CCT) 3000K 4000K 5000K
    Lumen Output (LM) 3,700 3,700 3,700
    Efficacy (lm/W) 135 135 135
    Input Voltage (V) 100-277V
    Power Factor >90%
    THD <20%
    CRI 73
    Optics Die-cast aluminum + Optic lens
    Beam Angle (°) 22°/35°/57°
    Dimensions (in) 8.46''(L) x 5.31''(φ)
    LED Class UL Listed: LM80
    Driver Class UL Listed: Class II
    Environment Wet Locations
    Operating Temperature –25°C to +40°C
    Certifications UL/cUL, DLC Premium, LM79, LM80
    L70 Lifetime (hours) 150,000 hours per L70 TM-21@ 25°C
    Warranty 6-year limited system warranty standard

    Features

    Controls

    • High system efficacy up to 135 LPW
    • Class II UL listed driver
    • Die-casting Aluminum heat sink, LED TC<75°C (25°C ambient)
    • Excellent thermal management ensures long lifespan
    • Tempered and shatter-resistant glass for durability
    • Sealed to keep out dirt, bugs and moisture
    • Environmentally friendly surface finish
    • Multiple optics allowing flexible designs
    • Various controls to achieve high energy saving
    • Reduces energy consumption over 70%

    Optics

    • Distribution Tight : 22° for spot areas
    • Distribution Medium : 35° for general areas
    • Distribution Wide: 57° for larger areas

    Electrical

    • 100-277V, and 347-480V available
    • System power factor >90% and THD <20%
    • LED driver with non-dimming and 0-10V dimming

    Ratings

    • 150,000 hours per L70 TM-21@25℃
    • Temperature rated-25°C to +45°C

    • 0-10V dimming optional
    * 12W is not available to do dimming.

    Housing & Finish

    • Die-casting Aluminum body
    • Tempered and shatter-resistant glass for durability
    • Bronze finish standard, black and white optional
    • RAL & custom colors available

    Accessories

    • Shroud
    • Lamp holder cover
    • Ground stake

    Compliance

    • DLC Premium (12W) (Model#5BF12GL30BN)
    • DLC Premium (30W) (Model#5BF30L30BDN)

    • DLC Premium (40W) (Model#5BF40SL30BDN)

    • UL/cUL listed
    • UL 1598 suitable for wet locations
    • LM79, LM80 test reports

    Warranty

    • 6-year limited system warranty
    * Please refer to Green Inova’s warranty term for complete information.

    Advantages

    3030 LED

    Product Details

    1.Long L90 lifetime: using latest LED technology, the L90 life is 60% longer than Philips 3030 LEDs.
    2.Super high light efficacy.
    3.Engineered with proprietary binned LM-80-rated LEDs, which are specially rated for higher thermal performances, provide uniform color consistency.
    4.To make the color more consistent, we always use the exact same bin for all the lights in a single project. We finer tune the binning.

    Options

    1. Shroud optional when need to gather the lighting.
    2. Lamp holder cover, base and ground stake optional for variety applications.
    3. 0-10V dimmable optional.
    4. Optional beam angle: 22/35/57 degree.
    5. Finish color optional: Bronze stanard, balck and white optional

    30W LED-bullet-flood-light-accessories
    LED landscape lighting

    Constructions

    1. Die cast aluminum heat sink make LED TC<75℃
    2. Sealed to keep out dirt and bug, IP65 rated
    3. Tempered shatter resistant glass lens for durability
    4. Weep hole located on lower lip of fixture to prevent water buildup
    5. Environmentally friendly surface finish
    6. Wall mount and ground mount are available

    Dimension

                                     12W                                                                                     30W/40W

    12W LED Bullet Flood Light Dimension
    30W LED Bullet Flood Light Dimension

    Installation Options

    Wall mount and ground mount are available.

    LED-bullet-flood-light-wall-mount
    LED-bullet-flood-light-groun-mount

    Wall Mount

    Ground Mount

    Applications

    • Indoor & outdoor lighting
    • Landscape lighting
    • Building lighting
    • Flag pole lighting

    The IP65 rated fixture, can be surface mounted directly to electrical boxes or posts with a 1/2” threaded bushing. Available with spot and flood optics making it ideal for an array of commercial and outdoor applications, including landscape, structural accent, building details and flag pole lighting.

    Please contact us for details spec sheet or other inquiry
