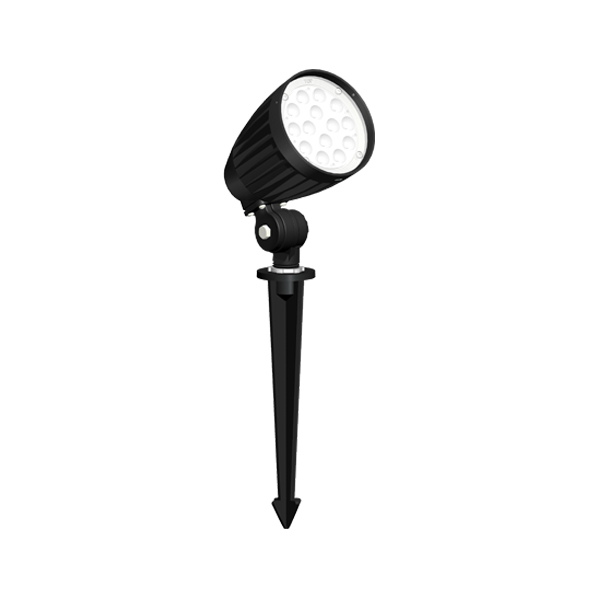

New Design Wattage CCT Selectable 12W LED Garden Light Landscape Light (8BF Series)

Short Description:

Wattage: 12W

Voltage: 100-277V

Lumen: 900-1584 LM

CCT: 3000K/4000K/5000K

Optics: Die-cast aluminum + Optical lens

Beam Angle: 22°/35°/57°/110°

Certifications: ETL, DLC, LM79, LM80

Warranty: 5-years limited

Send email to us Brochure DLC-QPL List

Product Detail

Product Tags

CCT Selectable LED Garden Light Description

Green Inova ® ‘s 8th Gen. LED Bullet Flood light delivers exceptional illumination performance by using Latest LED Technology, efficacy up to 135 lm/w, and it can replace up to 300W metal halide, energy saving over 80%.

CCT (Correlated Color Temperature) selectable LED bullet flood lights offer the flexibility to adjust the color temperature of the light emitted by the fixture. The ability to tune the color temperature to different levels, such as warm Lighting(3000K), Neutral Lighting(4000K), and Cool Lighting(5000K), provides several advantages

Sealed to keep out dirt, bugs and moisture, the luminaire is constructed with a precision die-cast aluminum housing and optical lens for a sleek appearance and maximum durability.

Wattage Selectable LED Garden Light Specification

Model #	8BF12U2SWP	8BF28U2SWP	8BF40U2SWP	8BF50U2SWP	8BF60U2SWP
Wattage Selectable	12W / 6W	28W / 20W / 12W	40W / 30W / 20W	50W / 35W / 25W	60W / 45W / 30W
Voltage	100-277V	100-277V	100-277V	100-277V	100-277V
Lumen Range	900 - 1,500 LM	2,100 - 3,780 LM	3,200 - 4,800 LM	4,125 - 6,250 LM	5,100 - 7,800 LM
Efficacy range	125 - 165 LM/W	135 - 175 LM/W	120 - 160 LM/W	125- 165 LM/W	130- 170 LM/W
CCT Selectable	3000K/4000K/5000K	3000K/4000K/5000K	3000K/4000K/5000K	3000K/4000K/5000K	3000K/4000K/5000K
CRI	70	70	70	70	70
Beam Angle	22°/35°/57°/110°	22°/35°/57°/110°	22°/35°/57°/110°	22°/35°/57°/110°	22°/35°/57°/110°
Fixture Material	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum	Die-Cast Aluminum
Fixture Finish	Bronze(STD.)	Bronze(STD.)	Bronze(STD.)	Bronze(STD.)	Bronze(STD.)
Photocontrol	YES	YES	YES	YES	YES
IP Rating	IP65	IP65	IP65	IP65	IP65
Operating Temp.	-35°C to +40°C	-35°C to +40°C	-35°C to +40°C	-35°C to +40°C	-35°C to +40°C
Safety Certification	ETL cETL Pending	ETL cETL Pending	ETL cETL Pending	ETL cETL Pending	ETL cETL Pending
Energy Certification	DLC Pending	DLC Pending	DLC Pending	DLC Pending	DLC Pending
Test Reports	LM79, LM80, IES Pending	LM79, LM80, IES Pending	LM79, LM80, IES Pending	LM79, LM80, IES Pending	LM79, LM80, IES Pending
Lifespan	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Warranty	5-year limited	5-year limited	5-year limited	5-year limited	5-year limited

Features

Controls

• High system efficacy up to 175 lm/w
• Die-casting Aluminum heat sink, LED TC<75°C (25°C ambient)
• Excellent thermal management ensures long lifespan
• Optical lens for durability
• Sealed to keep out dirt, bugs and moisture
• Environmentally friendly surface finish
• Multiple optics allowing flexible designs
• Various controls to achieve high energy saving
• Reduces energy consumption over 70%

Optics

• Distribution Tight : 22° for spot areas
• Distribution Narrow : 35° for spot areas
• Distribution Medium : 57° for general areas
• Distribution Wide: 110° for larger areas

Electrical

• 100-277V
• System power factor >90% and THD <20%
• LED driver, 0-10V dimming

Ratings

• 100,000 hours per L70 TM-21@25℃
• Operation Temperature -35°C to +40°C

• 0-10V dimming optional

Housing & Finish

• Die-casting Aluminum body
• Bronze finish standard, black and white optional
• RAL & custom colors available

Accessories

• Shroud
• Lamp holder
• Base
• U bracket
• Ground stake

Compliance

• ETL cETL Pending
• DLC Pending
• LM79, LM80 Test Reports Pending

Warranty

• 5-years limited
* Please refer to Green Inova’s warranty term for complete information.

Advantages

LED Details

1.Long L90 lifetime: using latest LED technology.
2.Super high light efficacy.
3.Engineered with proprietary binned LM-80-rated LEDs, which are specially rated for higher thermal performances, provide uniform color consistency.
4.To make the color more consistent, we always use the same bin for all the lights in a single project.

Options

1. Shroud optional when need to gather the lighting.
2. Lamp holder, U bracket, base and ground stake optional for variety applications.
3. 0-10V dimmable optional.
4. Optional beam angle: 22°/35°/57°/110°
5. Finish color optional: Bronze stanard, balck and white optional

Constructions

1. Die cast aluminum heat sink make LED TC<75℃
2. Sealed to keep out dirt and bug, IP65 rated
3. Die-cast aluminum + Optical lens
4. Weep hole located on lower lip of fixture to prevent water buildup
5. Environmentally friendly surface finish
6. Wall mount and ground mount are available

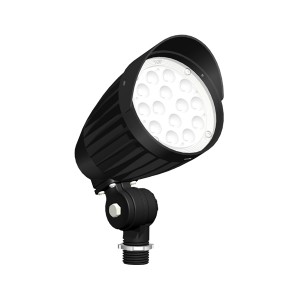

LED Bullet Flood (Color Temperature Selectable)

12W LED Landscape Light Dimension

Installation Options

Wall mount and ground mount are available.

Wall Mount

Ground Mount

LED Bullet Flood Applications

• Indoor & outdoor lighting
• Landscape lighting
• Building lighting
• Flag pole lighting

The IP65 rated fixture, can be surface mounted directly to electrical boxes or posts with a 1/2” threaded bushing. Available with spot and flood optics making it ideal for an array of commercial and outdoor applications, including landscape, structural accent, building details and flag pole lighting.
