200W LED High Bay Classic Shape High Bay Light Fixture Warehouse Lights with PC Acrylic Lens or Aluminum Reflector Meanwell Deiver UL,cUL Listed High Quality 6 Years Warranty (2HB Series)

Short Description:

  • Wattage: 200W
  • Voltage: 100-277V (347-480V available)
  • Lumens: 24,300 LM
  • CCT: 4000K/4500K/5000K
  • Beam Angle: 120°
  • Reflector: Acylic Lens or Aluminum Reflector optional
  • Certifications: UL/cUL, LM79, LM80, CE, RoHS
  • Warranty: 6-year limited system warranty
  • Product Detail

    Product Tags



    Green Inova ® LED High Bay delivers exceptional illumination performance by using Latest Nichia Technology. The 200W delivers 19,944 lumens achieving over 110 lumens per watt. Compared to traditional Metal Halide sources, energy savings of over 60% can be achieved.
    The fixture features a frosted lens design to create an even glow illumination and minimize glare. Offered with reflector choices of aluminum, clear acrylic with optional degrees — making it ideal for a variety of applications.
    Typical applications include warehouse facilities, assembly areas, gyms, hangers, transportation garages, loading and staging areas.

    Specification Summary

    Typical Model GI-2HB16-XX-ACN GI-2HB16-XX-ALN
     Power (W) 200W
    Color Temperature (CCT) 4000K/4500K/5000K 4000K/4500K/5000K
    Lumen Output (LM) 19,062
    Efficacy (lm/W) 106
    Input Voltage (V) 100-277V 100-277V
    Power Factor >90% >90%
    THD <18% <18%
    CRI ≥73 ≥73
    Reflector Acrylic Lens Aluminum Reflector
    LED Brand Nichia LED
    Driver Brand Meanwell
    LED Class UL Listed: LM80
    Driver Class UL Listed: Class II
    Controls 0-10V Dimming available
    Environment Indoor
    Operating Temperature –30°C to +45°C
    Certifications UL/cUL, LM79, LM80
    Warranty 6-year limited system warranty standard



    • High output Nichia LEDs deliver over 110 lumens per watt
    • Superior illumination performance
    • Standard 0-10V dimmable available
    • Reduces energy consumption up to 60%
    • Superior thermal management with external Air-Flow fins
    • Quick and easy installation
    • 100,000 hours average life


    • 100-277V (347-480V available)
    • System power factor >90% and THD <20%
    • LED driver with non–dimming / 0-10V dimming

    Housing & Finish

    • Cold forging Aluminum housing
    • Silver color

    • 0-10V dimming optional

    Reflector Options

    • Aluminum reflector
    • Acrylic lens (PC cover)


    • UL/cUL listed, file#E352762
    • UL 1598 suitable for damp locations
    • LM79, LM80 test reports
    • CE & RoHS available


    • L90>70,000 hours at 40°C(Tc), compliant with IESNA TM-21
    • Temperature Rated at –30°C to +45°C


    • 6-year limited system warranty


    Nichia LED

    High Quality Nichia LEDs

    • Long L90 lifetime: using Nichia's latest LED technology, the L90 life is 60% longer than Philips 3030 LEDs.
    • Import from Japan Nichia directly.

    Real Mean Well Driver

    One of our subsidiary corporations is a Mean Well distributor, allowing us quality source for Mean well drivers.

    Meanwell driver

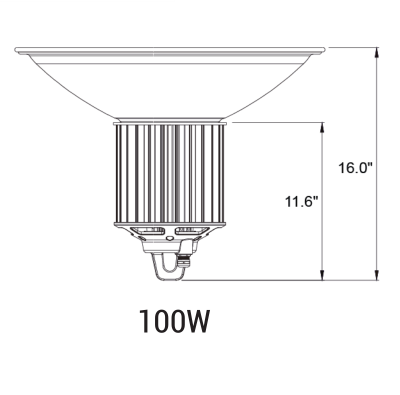

    100W LED high bay light dimension
    150W LED high bay light dimension
    200W LED high bay light dimension
    LED high bay light aluminum reflector dimension
    LED high bay light reflector dimension

    Hook Mout

    LED high bay light hook 1
    LED high bay light hook 2


    • Exterior and Interior
    • Industrial and Commercial
    • Retail, gymnasiums, warehouses, manufacturing facilities, etc.
    The 2HB series is specifically designed for taller ceilings and larger areas. Ideal for use in warehouses, manufacturing plants, supermarkets, malls, retail stores, exhibition centers, arenas, stadiums, etc.

    high bay light applications

    Project that feedback from our customer


    Application: Shopping Mall
    Location: Blainville QC, Canada
    Product: 200W LED classic high bay light 112 units

    Click to view other wattages


    Please contact us for details spec sheet or other inquiry
